- Metric threads: M8 → M24
- For loads ranging from .25t to 2.5t
- The ring swivels 180°, but has a rotating range of 360
- Fast anchoring
- Safety Factor of 5
- Individual traceability number
- Operating temperature: -20°C to 200°C / -4°F to 392°F
- Clear markings (CE, WLL, tightening torque)
- Anti-corrosion coating (zinc coating) on bolt and base
- Verification of each thread with calibrated gauge

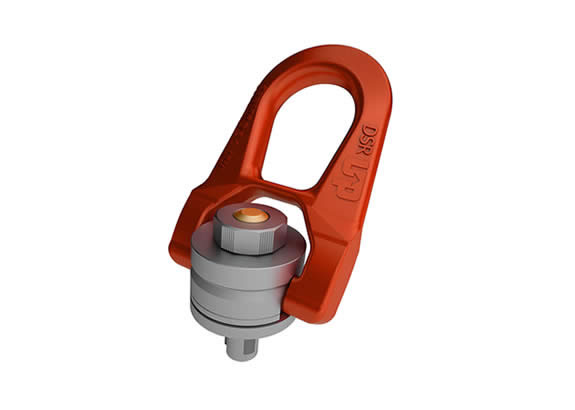

PCS Company offers the Codipro Metric QLR (Quick Lift Ring) . The QL.DSR is a double swivel ring that allows particularly fast anchoring. At the push of a button, it can be fixed in the threaded hole in a matter of seconds. Its double swivel ensures a perfect alignment with the sling. The QL.DSR saves up to 80 % of time compared to screwing in a conventional lifting ring. The system works purely mechanically and thus requires no complex maintenance. See instructions under Resources for further info. Register your Codipro Eyebolt at Coditracer.
