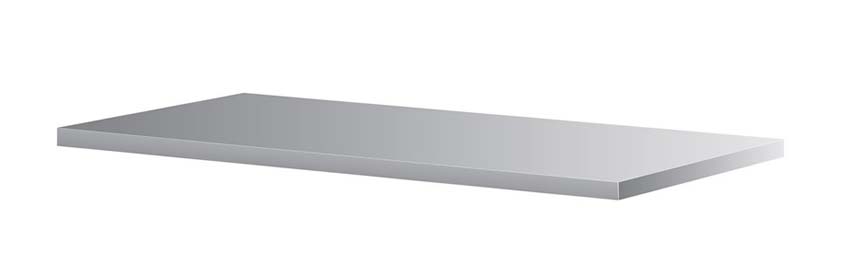

Finish Ground Machined Ejector Plates are interchangeable and available in plate thicknesses and frame sizes range across the entire line of PCS standard mold bases in 1050 (#1) steel, and some standard mold base sizes in #7 stainless steel
| Item Number | Frame Size | Width | Length | Thickness | Material | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|
| 1EP-1012-10N | 9-7/8 x 11-7/8 | 6.875 | 11.865 | 1 | Steel - 1 | $136.16 | ||
| 1EP-1016-10N | 9-7/8 x 16 | 6.875 | 15.99 | 1 | Steel - 1 | $182.37 | ||
| 1EP-108-10N | 9-7/8 x 8 | 6.875 | 7.99 | 1 | Steel - 1 | $129.15 | ||
| 1EP-1112-10N | 10-7/8 x 12 | 7.375 | 11.99 | 1 | Steel - 1 | $163.17 | ||
| 1EP-1114-10N | 10-7/8 x 14 | 7.375 | 13.99 | 1 | Steel - 1 | $162.77 | ||
| 1EP-1118-10N | 10-7/8 x 18 | 7.375 | 17.99 | 1 | Steel - 1 | $203.21 | ||
| 1EP-1212-11N | 11-7/8 x 12 | 8.375 | 11.99 | 1.125 | Steel - 1 | $194.88 | ||
| 1EP-1215-11N | 11-7/8 x 15 | 8.375 | 14.99 | 1.125 | Steel - 1 | $196.83 | ||
| 1EP-1220-11N | 11-7/8 x 20 | 8.375 | 19.99 | 1.125 | Steel - 1 | $252.27 | ||
| 1EP-1223-11N | 11-7/8 x 23-1/2 | 8.375 | 23.49 | 1.125 | Steel - 1 | $305.85 | ||
| 1EP-1315-11N | 13-3/8 x 15 | 9.5 | 14.99 | 1.125 | Steel - 1 | $230.17 | ||
| 1EP-1318-11N | 13-3/8 x 18 | 9.5 | 17.99 | 1.125 | Steel - 1 | $246.83 | ||
| 1EP-1321-11N | 13-3/8 x 20-3/4 | 9.5 | 20.74 | 1.125 | Steel - 1 | $284.44 | ||
| 1EP-1326-11N | 13-3/8 x 26 | 9.5 | 25.99 | 1.125 | Steel - 1 | $366.84 | ||
| 1EP-1518-11N | 14-7/8 x 17-7/8 | 11 | 17.865 | 1.125 | Steel - 1 | $281.89 | ||
| 1EP-1524-11N | 14-7/8 x 23-3/4 | 11 | 23.74 | 1.125 | Steel - 1 | $368.69 | ||
| 1EP-1616-11N | 15-7/8 x 16 | 12 | 15.99 | 1.125 | Steel - 1 | $277.85 | ||
| 1EP-1620-11N | 15-7/8 x 20 | 12 | 19.99 | 1.125 | Steel - 1 | $331.89 | ||
| 1EP-1623-11N | 15-7/8 x 23-1/2 | 12 | 23.49 | 1.125 | Steel - 1 | $388.83 | ||
| 1EP-1626-11N | 15-7/8 x 26 | 12 | 25.99 | 1.125 | Steel - 1 | $423.08 | ||
| 1EP-1629-11N | 15-7/8 x 29-1/2 | 12 | 29.49 | 1.125 | Steel - 1 | $488.11 | ||
| 1EP-1818-11N | 17-7/8 x 18 | 14 | 17.99 | 1.125 | Steel - 1 | $362.68 | ||
| 1EP-1820-11N | 17-7/8 x 20 | 14 | 19.99 | 1.125 | Steel - 1 | $405.72 | ||
| 1EP-1823-11N | 17-7/8 x 23-1/2 | 14 | 23.49 | 1.125 | Steel - 1 | $428.28 | ||
| 1EP-1826-11N | 17-7/8 x 26 | 14 | 25.99 | 1.125 | Steel - 1 | $444.25 | ||
| 1EP-1924-11N | 19-1/2 x 23-3/4 | 15.625 | 23.74 | 1.125 | Steel - 1 | $504.55 | ||
| 1EP-1929-11N | 19-1/2 x 29-1/2 | 15.625 | 29.49 | 1.125 | Steel - 1 | $605.45 | ||
| 1EP-2424-11N | 23-3/4 x 23-3/4 | 19.875 | 23.74 | 1.125 | Steel - 1 | $593.88 | ||
| 1EP-2429-11N | 23-3/4 x 29-1/2 | 19.875 | 29.49 | 1.125 | Steel - 1 | $711.46 | ||
| 1EP-2435-11N | 23-3/4 x 35-1/2 | 19.875 | 35.49 | 1.125 | Steel - 1 | $838.06 | ||
| 1EP-812-10N | 7-7/8 x 11-7/8 | 5.25 | 11.865 | 1 | Steel - 1 | $119.62 | ||
| 1EP-88-10N | 7-7/8 x 7-7/8 | 5.25 | 7.865 | 1 | Steel - 1 | $110.75 | ||
| 7EP-1012-10N | 9-7/8 x 11-7/8 | 6.875 | 11.865 | 1 | Steel - 7 Stainless | $186.79 | ||
| 7EP-108-10N | 9-7/8 x 8 | 6.875 | 7.99 | 1 | Steel - 7 Stainless | $205.33 | ||
| 7EP-1114-10N | 10-7/8 x 14 | 7.375 | 13.99 | 1 | Steel - 7 Stainless | $238.23 | ||
| 7EP-1212-11N | 11-7/8 x 12 | 8.375 | 11.99 | 1.125 | Steel - 7 Stainless | $243.64 | ||
| 7EP-1215-11N | 11-7/8 x 15 | 8.375 | 14.99 | 1.125 | Steel - 7 Stainless | $300.50 | ||
| 7EP-812-10N | 7-7/8 x 11-7/8 | 5.25 | 11.865 | 1 | Steel - 7 Stainless | $162.43 | ||
| 7EP-88-10N | 7-7/8 x 7-7/8 | 5.25 | 7.865 | 1 | Steel - 7 Stainless | $132.65 |
