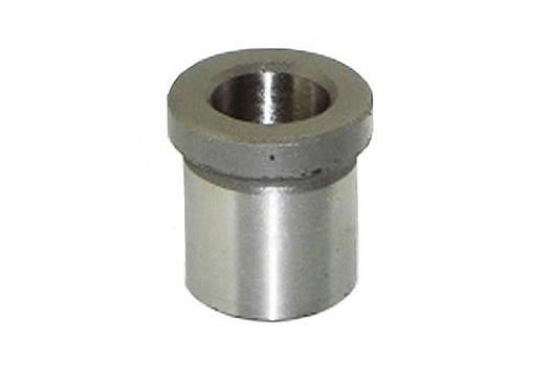

F.I.T.S.™ Shoulder Bushings are hardened and precision ground. They are designed to be used with F.I.T.S.™ assemblies. These Shoulder Bushings eliminate galling to leader pins and help keep the mold in alignment.
| Item Number | H Head Diameter | L1 - I.D. Bearing Length | I.D. | O.D. | L Overall Length | T Shoulder | Nominal Diameter | Material | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FB-50-06 | 0.875 | 1 | 0.5005 | 0.7505 | 0.75 | 0.187 | 1/2 | 4130 | $6.70 | ||
| FB-50-07 | 0.875 | 1 | 0.5005 | 0.7505 | 0.87 | 0.187 | 1/2 | 4130 | $6.93 | ||
| FB-50-10 | 0.875 | 1 | 0.5005 | 0.7505 | 1 | 0.187 | 1/2 | 4130 | $7.23 | ||
| FB-50-11 | 0.875 | 1 | 0.5005 | 0.7505 | 1.12 | 0.187 | 1/2 | 4130 | $7.66 | ||
| FB-50-12 | 0.875 | 1 | 0.5005 | 0.7505 | 1.25 | 0.187 | 1/2 | 4130 | $8.14 | ||
| FB-50-13 | 0.875 | 1 | 0.5005 | 0.7505 | 1.37 | 0.187 | 1/2 | 4130 | $8.91 | ||
| FB-50-14 | 0.875 | 1 | 0.5005 | 0.7505 | 1.5 | 0.187 | 1/2 | 4130 | $9.28 | ||
| FB-50-15 | 0.875 | 1 | 0.5005 | 0.7505 | 1.62 | 0.187 | 1/2 | 4130 | $9.81 | ||
| FB-50-16 | 0.875 | 1 | 0.5005 | 0.7505 | 1.75 | 0.187 | 1/2 | 4130 | $10.14 | ||
| FB-50-17 | 0.875 | 1 | 0.5005 | 0.7505 | 1.88 | 0.187 | 1/2 | 4130 | $10.71 | ||
| FB-50-20 | 0.875 | 1 | 0.5005 | 0.7505 | 2 | 0.187 | 1/2 | 4130 | $10.41 | ||
| FB-50-21 | 0.875 | 1 | 0.5005 | 0.7505 | 2.12 | 0.187 | 1/2 | 4130 | $11.55 | ||
| FB-50-22 | 0.875 | 1 | 0.5005 | 0.7505 | 2.25 | 0.187 | 1/2 | 4130 | $11.88 | ||
| FB-50-23 | 0.875 | 1 | 0.5005 | 0.7505 | 2.38 | 0.187 | 1/2 | 4130 | $12.12 | ||
| FB-50-25 | 0.875 | 1 | 0.5005 | 0.7505 | 2.625 | 0.187 | 1/2 | 4130 | $18.91 | ||
| FB-62-07 | 1.125 | 1.25 | 0.6255 | 0.8755 | 0.87 | 0.187 | 5/8 | 4130 | $7.44 | ||
| FB-62-10 | 1.125 | 1.25 | 0.6255 | 0.8755 | 1 | 0.187 | 5/8 | 4130 | $8.30 | ||
| FB-62-11 | 1.125 | 1.25 | 0.6255 | 0.8755 | 1.12 | 0.187 | 5/8 | 4130 | $8.73 | ||
| FB-62-12 | 1.125 | 1.25 | 0.6255 | 0.8755 | 1.25 | 0.187 | 5/8 | 4130 | $8.86 | ||
| FB-62-13 | 1.125 | 1.25 | 0.6255 | 0.8755 | 1.37 | 0.187 | 5/8 | 4130 | $9.94 | ||
| FB-62-14 | 1.125 | 1.25 | 0.6255 | 0.8755 | 1.5 | 0.187 | 5/8 | 4130 | $10.28 | ||
| FB-62-15 | 1.125 | 1.25 | 0.6255 | 0.8755 | 1.62 | 0.187 | 5/8 | 4130 | $10.41 | ||
| FB-62-16 | 1.125 | 1.25 | 0.6255 | 0.8755 | 1.75 | 0.187 | 5/8 | 4130 | $10.27 | ||
| FB-62-17 | 1.125 | 1.25 | 0.6255 | 0.8755 | 1.88 | 0.187 | 5/8 | 4130 | $11.84 | ||
| FB-62-21 | 1.125 | 1.25 | 0.6255 | 0.8755 | 2.12 | 0.187 | 5/8 | 4130 | $12.03 | ||
| FB-62-22 | 1.125 | 1.25 | 0.6255 | 0.8755 | 2.25 | 0.187 | 5/8 | 4130 | $12.24 | ||
| FB-62-23 | 1.125 | 1.25 | 0.6255 | 0.8755 | 2.37 | 0.187 | 5/8 | 4130 | $12.98 | ||
| FB-62-25 | 1.126 | 1.25 | 0.6255 | 0.8755 | 2.625 | 0.187 | 5/8 | 4130 | $20.47 | ||
| FB-62-27 | 1.125 | 1.25 | 0.6255 | 0.8755 | 2.88 | 0.187 | 5/8 | 4130 | $14.17 |
