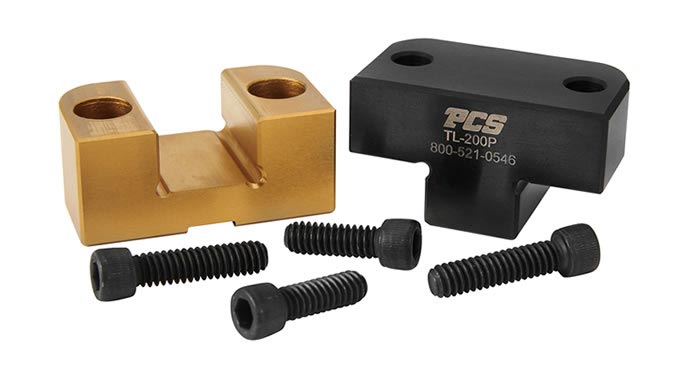

PCS Black & Gold Top Locks provide positive alignment between mold halves and are priced well below the competition. These locks are hardened and precision ground to assure complete interchangeability.
| Item Number | W Lock Width | T Size Across | C Locking Feature Width | D Female Lock Height | E Male Base Height | F Locking Feature Length | R Corner Radius | SHCS Male | SHCS Female | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TL-125P | 1.2500 | 0.750 | 0.4380 | 0.625 | 0.500 | 0.375 | 0.260 | 8-32 X 5/8 | 8-32 X 3/4 | $102.02 | ||
| TL-150P | 1.5000 | 1.000 | 0.5000 | 0.875 | 0.375 | 0.500 | 0.260 | 10-32 X 1/2 | 10-32 X 7/8 | $119.03 | ||
| TL-200P | 2.0000 | 1.125 | 0.7500 | 0.875 | 0.625 | 0.500 | 0.385 | 1/4-20 X 3/4 | 1/4-20 X 1 | $136.03 | ||
| TL-250P | 2.5000 | 1.500 | 1.0000 | 1.375 | 0.625 | 0.750 | 0.385 | 1/4-20 X 3/4 | 1/4-20 X 1-1/2 | $148.90 | ||
| TL-300P | 3.0000 | 1.750 | 1.1250 | 1.250 | 0.875 | 0.750 | 0.510 | 5/16-18 X 1 | 5/16-18 X 1-1/4 | $183.27 |
